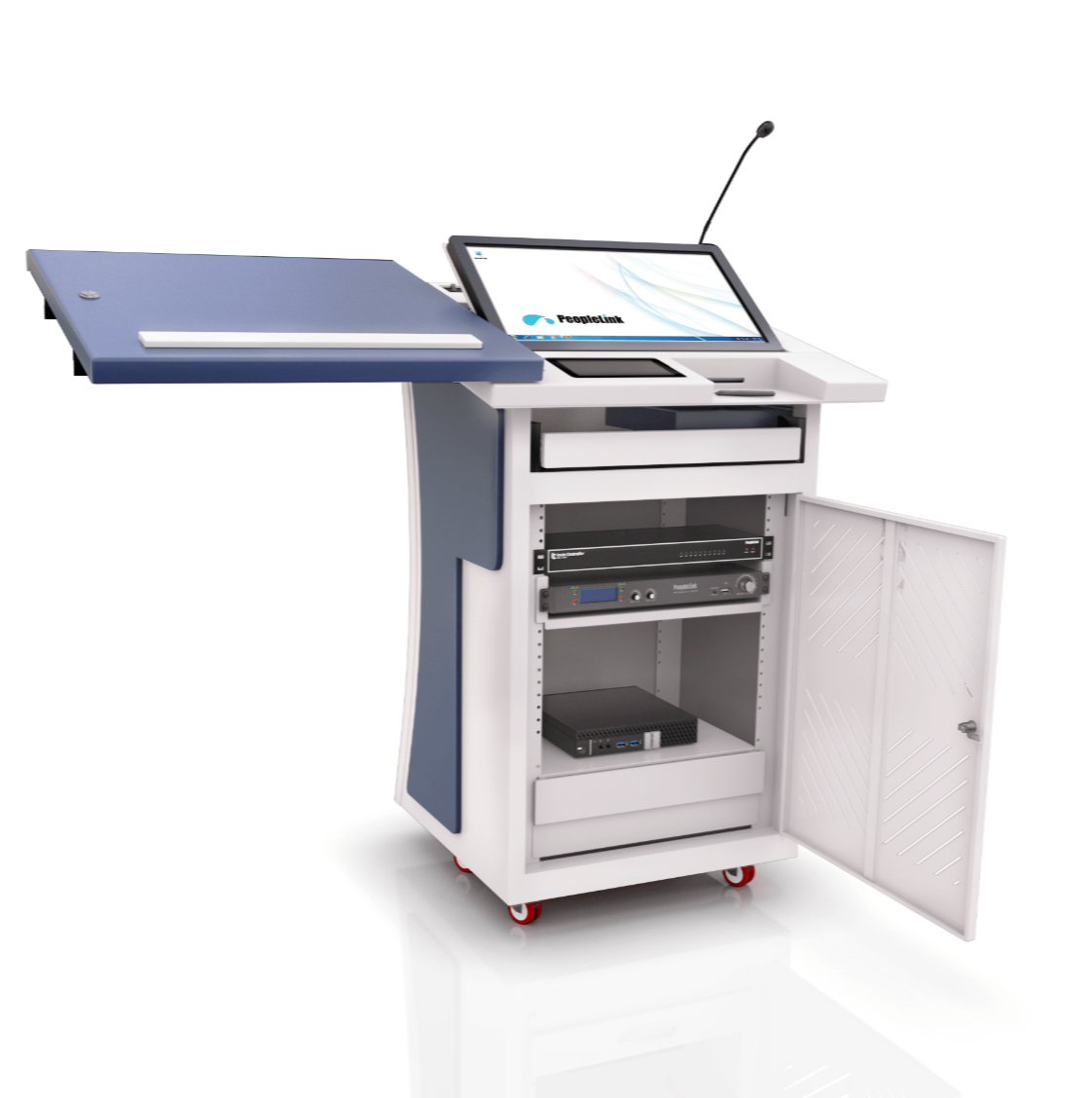

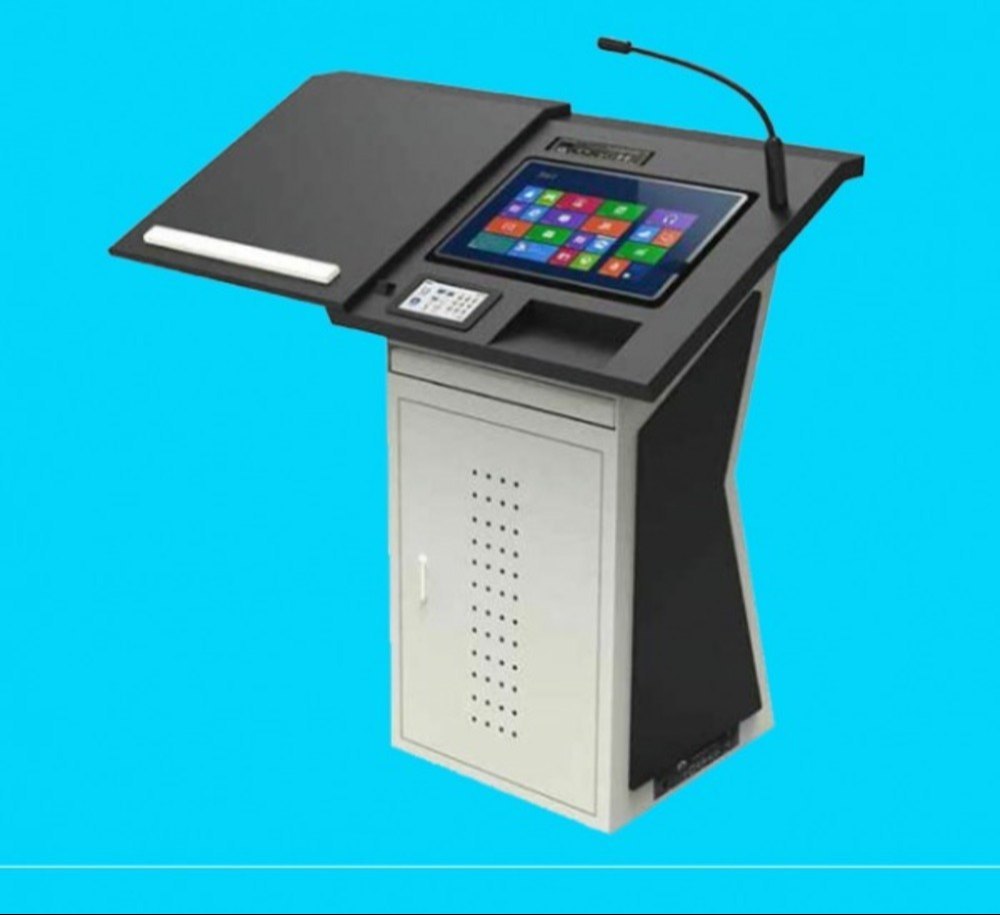

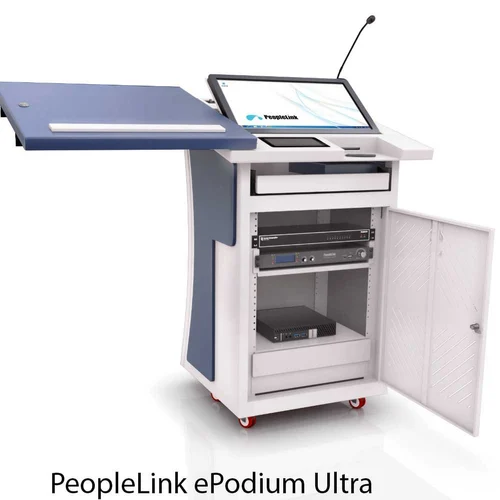

PeopleLink e-Podium Ultra200

295000/-

BODY / FORM FACTOR

Body and Top : Metallic

All Doors Lockable: Yes

Top Sliding Mechanism : Yes

Provision for Monitor : Yes

(up to 22 inches)

Electronic Monitor Lift : Yes

Document Camera Tray : Yes

(Sliding Type)

RFID : Optional



Touch Monitor Features

Screen Size : 21.5” Diagonal

Resolution : 1920 x 1080

PC Connection : USB Port

Brightness : 250 cd/m2

Input : HDMI

Display Colors : 16.7M

Response Time : 5ms

Contrast Ratio : 1000/1

Operating System : Windows, Linux,

Mac.



Electrical

Power : 100 – 250V AC



General Specifications

Digital Signal Processor

Frequency Range : 30Hz -15000 Hz

Automatic Echo Cancellation : Yes

Automatic Gain Control : Yes

Dynamic Noise Reduction : Yes

Full Duplex : Yes

Line Input : 1x Line Input

Line Output : 1 x Line Output

USB Audio Port : 1 x USB Port



Multi Channel Digital Signal

Package Includes

Microphone Options : 1 lapel + 1 Handheld

Frequencies Response : 50 Hz-18000 Hz

Antennas : 2 x 3dBi

Output : Balanced Out x2, Mixed Out x 1

Volume Control : Yes

Amplifier : Yes

Line Input : 1x Balanced, 2 x Unbalanced.

Phantom : Yes ( 15 V for Balanced Input)

Power Output @8 ohms : 100 Watts x2

Minimum Impedance : 8 Ohms

Frequency Response : 20Hz-20000Hz

Speakers ( 2Pair): 50 Watts Speaker ( 1” Titanium Dome

Tweeter, 5.25” Polypropylene Woofer, 90-20KHz

Frequency response)



Central Controller

Ethernet : 1x RJ-45

RS-232 Port : Total 1 dedicated RS-232 Port

Relay Switch Port : Screen Up / Screen Down ( 2 Nos)



Gooseneck Microphone Features: (Optional)

Cartridge : 20mm Condenser

Frequency Response : 40~20000 Hz.

Polar Pattern : Cardioids

Connectors : 3-Pin XLR



Control Pad

Type : Buttonpad

Interface : RS-232

Power : 12V

Size : N/A

Type: Button Pad with Buttons: VGA, HDMI, PC, Screen

up / Screen Down, Projector Lift up, Projector Lift Down,

Mic Mute / Unmute, Volume Mute / Unmute, Volume

Up/Down.



Laptop Interface

Laptop Interface : Inbuilt

Video Port For laptop : 1x USB TYPE-C, 2 x HDMI

Audio Port for Laptop : 1x 3.5mm Stereo Female Port

LAN Port : 1x RJ-45

USB Ports : 4x USB 2.0 Ports, 1x USB 3.0 Ports,

1xUSB ( Laptop Touch & DSP), 1xUSB ( CPU Touch & DSP)

Power Socket : 3 Pin AC 220 Power Socket

RS-232 Port : 1X 3 Pin RS-232 Ports, 1 x 9 Pin RS-232 Port.

Video Input Ports : 2 HDMI x Laptop, 1 HDMI x PC,

1 HDMI x Visualizer

Switcher : Inbuilt 4 HDMI Input, 2 HDMI Output,

1 VGA Output



CPU (Optional)

Processor : Intel i5 / i7

RAM : 16 GB

SSD : 512 GB

Operating System : Windows 11 Pro

Keyboard & Mouse : Yes



  • SKU: 3

  • Brand: PeopleLink

  • Category: Audio-Visual (AV) Integration
