BenQ InstaShow WDC15 4K UHD
The BenQ InstaShow WDC15 (4K
UHD) is a professional-grade wireless presentation system designed for
huddle rooms and corporate environments. It emphasizes a "no-driver"
setup, allowing guests and employees to share 4K content without installing
software or joining the local Wi-Fi network.
Technical
Specifications
|
Feature |
Specification |
|
Output Resolution |
Up to 4K UHD (3840 x 2160) @
30Hz |
|
Input Resolution |
Up to 4K UHD (3840 x 2160) @
30Hz |
|
Wireless Standard |
IEEE 802.11ac (Wi-Fi 5), 5GHz,
2T2R |
|
Data Rate |
Up to 867 Mbps |
|
Security (Encryption) |
WPA3 Personal/Enterprise, AES
256-bit |
|
Certification |
CVSS 4.0 (Information Security) |
|
Transmission Distance |
Up to 15 meters (between Button
and Receiver) |
|
Simultaneous Users |
Up to 16 connected buttons (one
active at a time) |
|
Audio |
Stereo, Radio quality 16-bits
48KHz |
Interface
& Connectivity

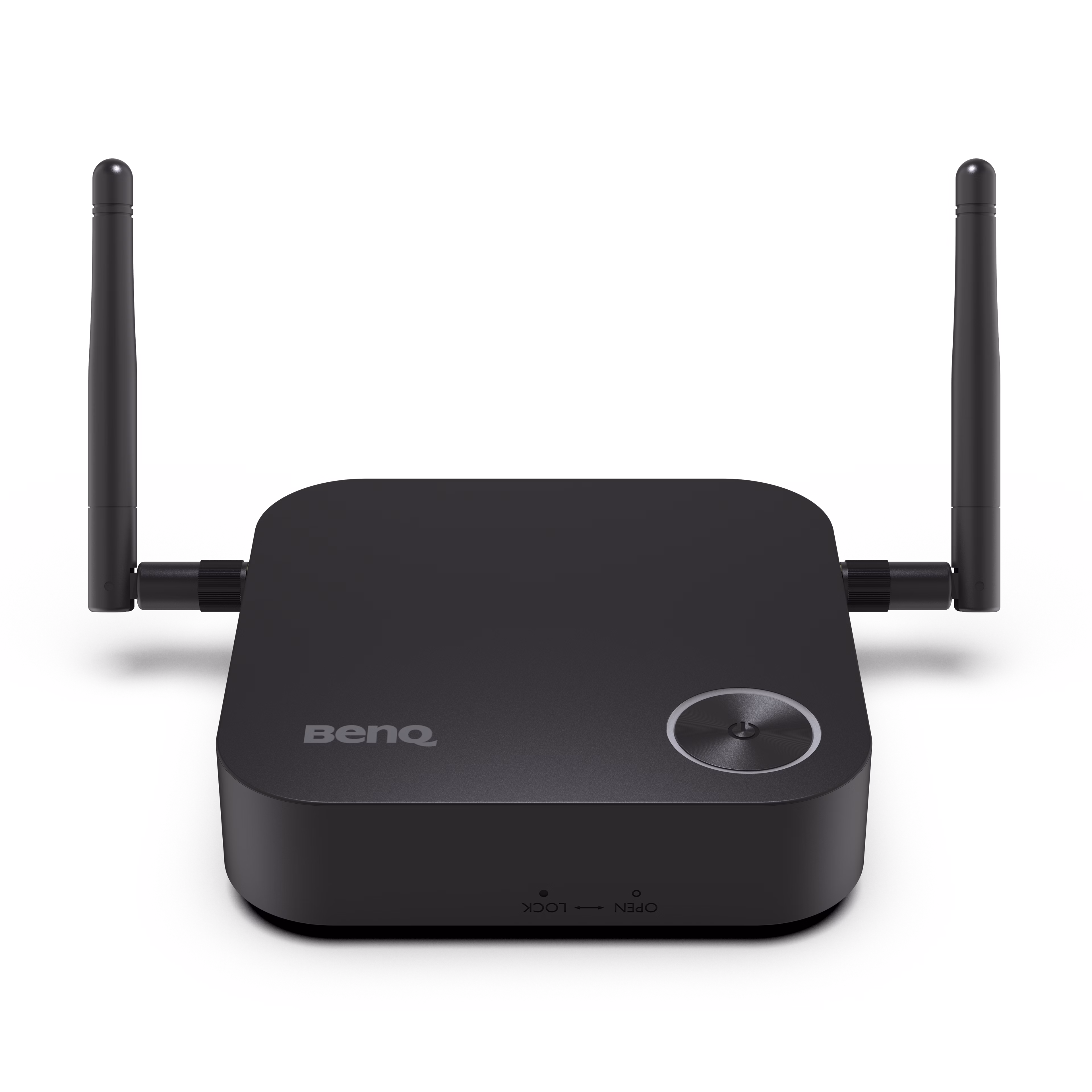

- Receiver (RX):
- 1 x HDMI 1.4 (Video Output)
- 1 x RJ-45 (LAN for web management)
- 1 x USB Type-A (For Touchback/firmware)
- 1 x Micro USB (Power)

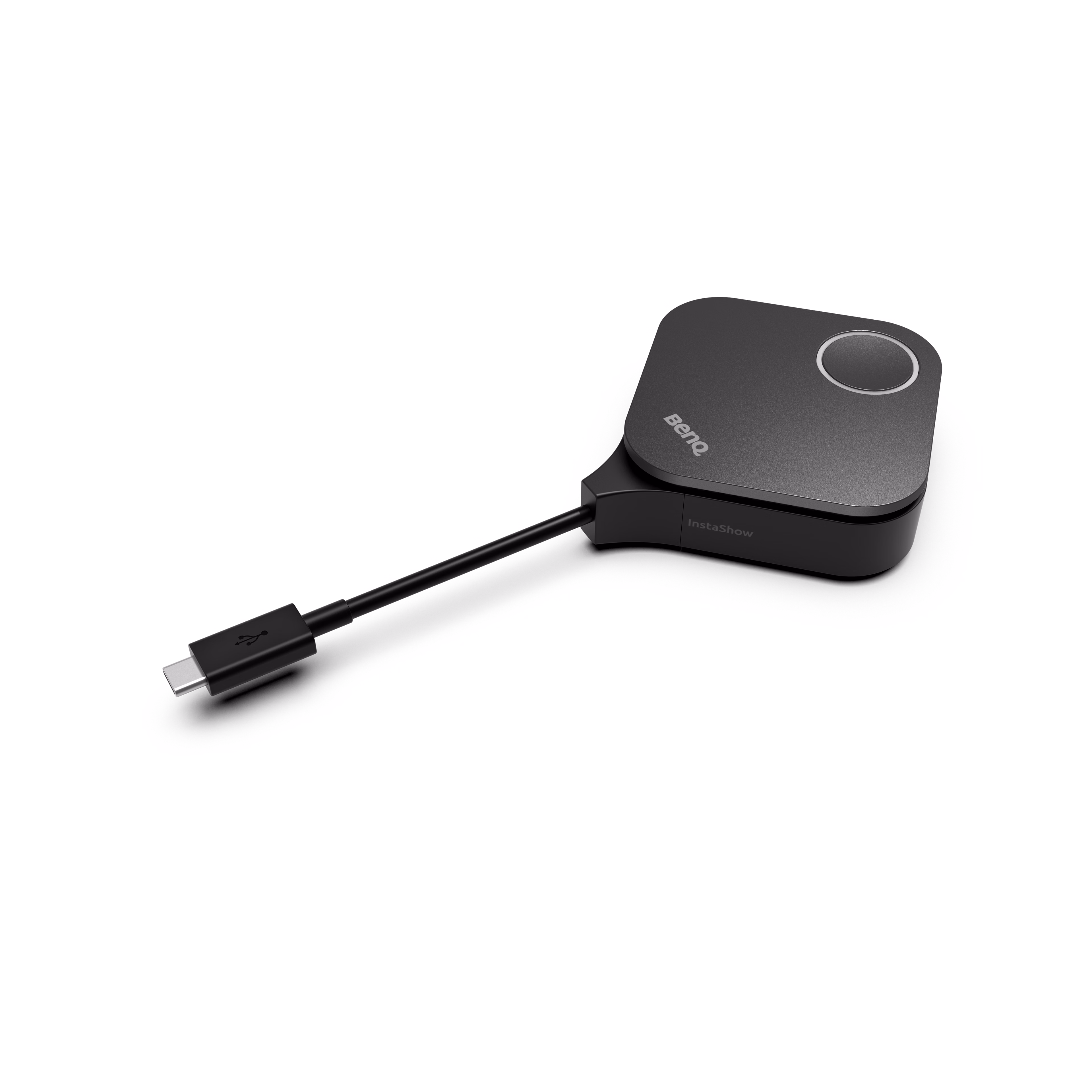

- Button (TX):
- Dual Interface: Switchable between USB-C
and HDMI + USB-A (for power/data).
- Function Keys: Large "Present"
key and a side "Mode" key (Switch between Video/Presentation
mode).
Key
Features
- True Plug-and-Play: No applications or drivers
required on the source laptop (Windows, macOS, Linux, or ChromeOS).
- Touchback Support: Allows you to control the
laptop directly from an interactive flat panel or touch screen during the
presentation.
- Video/Presentation Modes: * Presentation Mode:
Optimizes for static slides and low latency.
- Video Mode: Optimizes for smooth 4K video playback with high frame rates.
- Enterprise Security: Operates on its own private
wireless tunnel, keeping the corporate network isolated from guests.
- HDCP Support: Allows for the smooth
streaming of protected digital content.
Physical
Dimensions
- Receiver (without antenna): 110 x 110 x 29 mm
- Button: 70 x 70 x 24.5 mm
- Cradle: 128 x 84.5 x 62 mm (Stores up to 2 buttons)
-
SKU:
-
Brand: BenQ
-
Category: Wireless Presentation System
